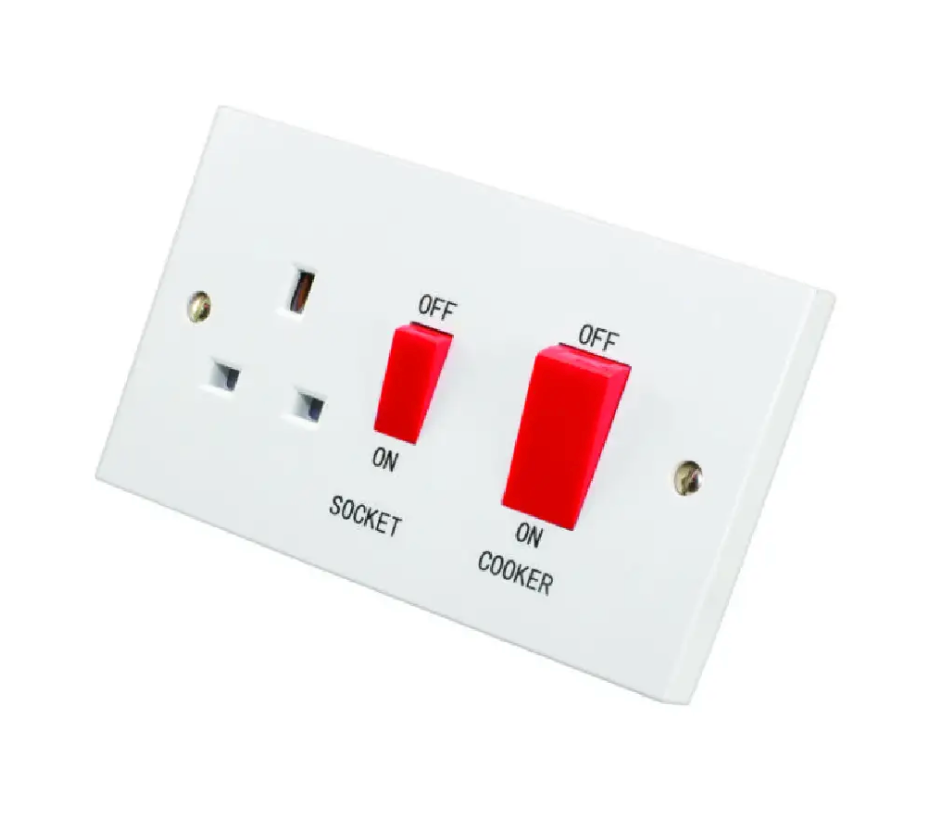

Thrion Slimline 45A Cooker Control Unit

Description
Thrion SL45CCU Ultra Slim 45A Slimline Cooker Control Unit
Ultra slim flat plate.
All terminal and fixing screws are operated by one 4mm screwdriver.
Polycarbonate front cover plates with a glossy finish.
A compact mechanism for greater wiring space.
Separate double pole switching for both cooker and socket outlet.
The Thrion SL45CCU 45A Slimline Cooker Control Unit socket for domestic cooker control; made of white molded plastic, with a red concave rocker, and has a unique slim profile with a curved top and bottom edges. These 45A Slimline Cooker Control Unit has two earth terminals, clear white terminal markings, color-coded terminals, top facing terminal screws and terminals have large lead-ins.

Features:
Brand: Thrion.
Fitted with earth terminals.
Toggle action switches.
Rotary-operated shutter.
Conforms to BS 4177: 1992.
Two earth terminals are fitted.
Neon indicator: No.
Rating: 45 Amp.
Color: White.
Material: Thermoplastic with a glossy finish.
Dimensions: (L)146mm x (W)86mm x (D)7mm.
