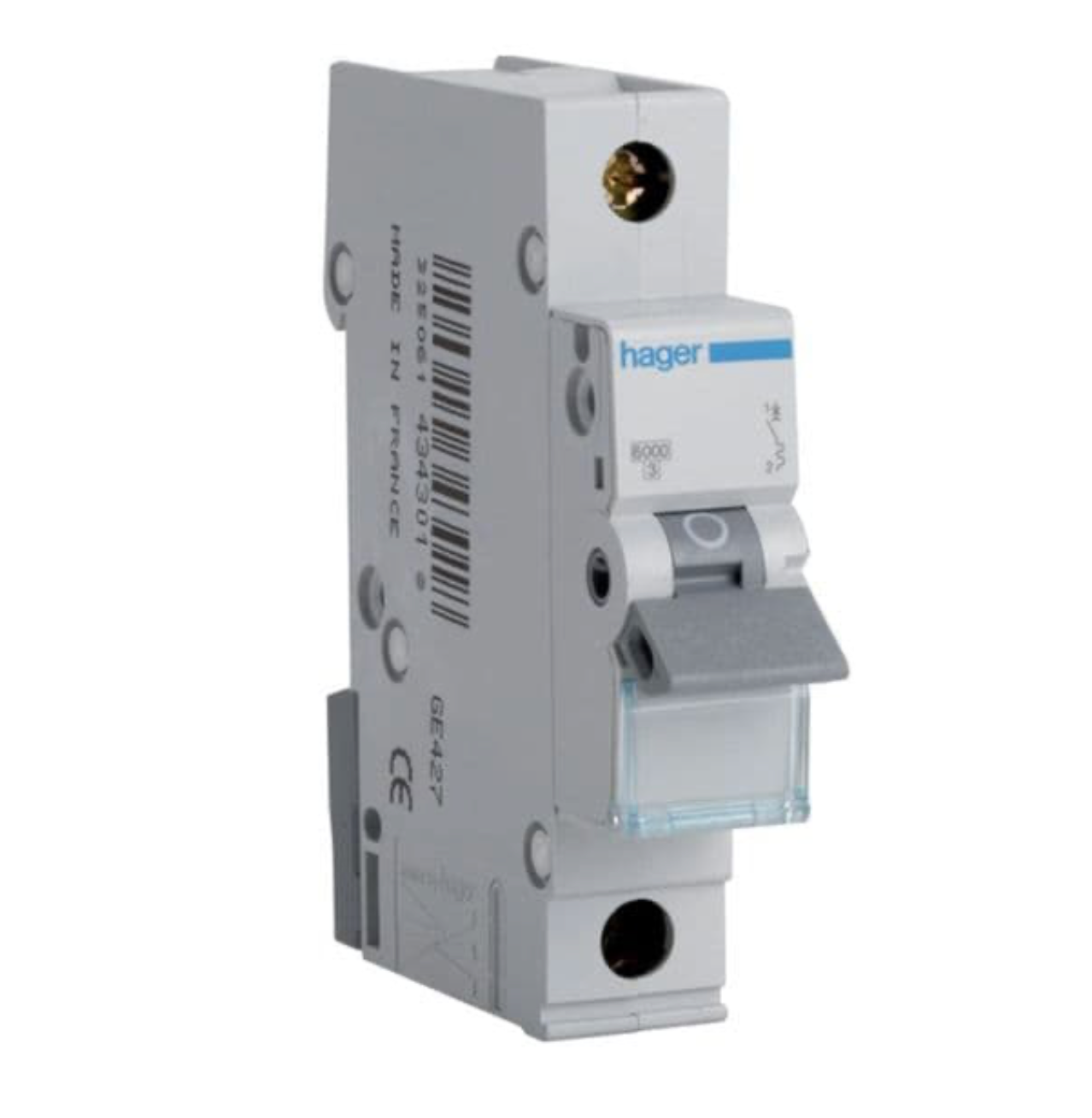

Hager MTN132 MCB SP Type B 32A 6kA

Designed for use in domestic circuit protection, Hager MTN Mini Circuit Breakers detect overcurrents due to both overload and fault and will operate to interrupt the electrical supply thus preventing damage to the installation and devices. MTN breakers offer a type B curve meaning they will trip between 3 and 5 time full load current which is suitable for most domestic installations. The MCB

DIN rail mounted, the Hager MTN Domestic MCBs have a short circuit breaking capacity of 6kA. The current carrying capacity of the cable should always exceed the current rating of the MCB to prevent damage.

The MCBs have a positive indication for On or Off and the operating switch may be locked in either position without affecting operation of the trip mechanism. When in the off position the contact gap is 4 mm meaning that the MCB may be used as single pole isolating switch where appropriate.

The current carrying capacity of the cable should always exceed the current rating of the MCB to prevent damage. All electrical works should be carried out by a fully qualified professional.

Type of pole: Single
Curve: B
Rated short circuit breaking capacity: 6 kA
Rated current: 6 A
Rated operational voltage Ue: 230/400 V
Top and bottom screw terminals - flexible cable: 1/16 mm²
Top and bottom screw terminals - rigid cable: 1/25 mm²
Number of modules: 1
Tightening torque: 2,8Nm
