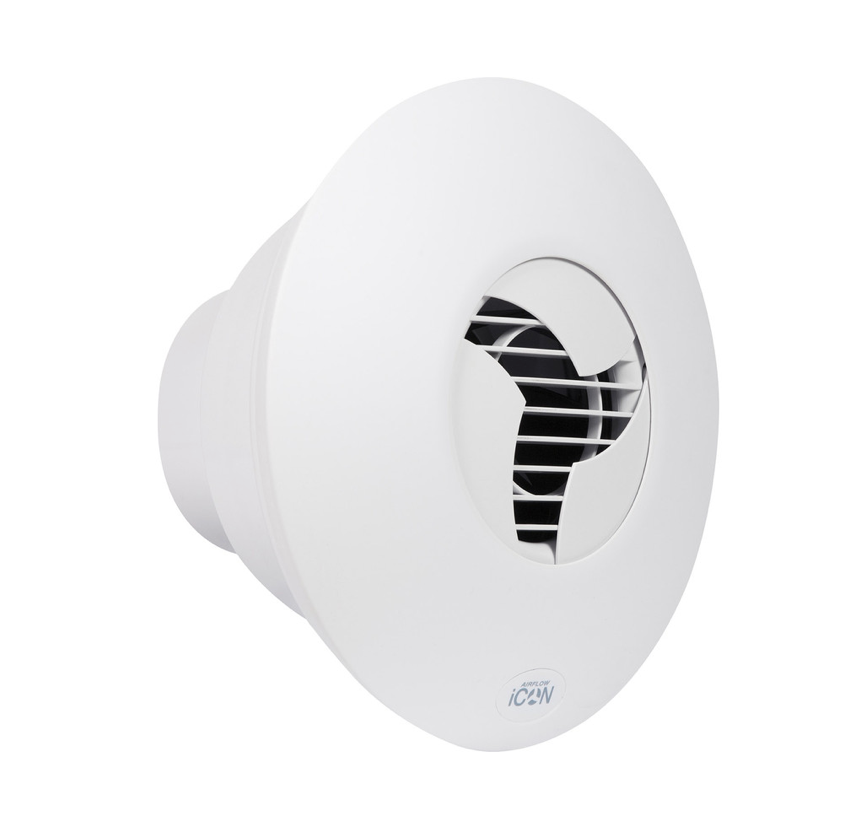

ICON 30 MIXED CENTRIFUGAL/AXIAL FAN

The Airflow ICON30 72687257 ventilation fan is suitable for fitting into walls or ceilings in areas such as shower rooms, bathrooms, en-suites and toilets.

The central “iris” shutter opens when switched on ensuring the silent running of the fan to help prevent noise infiltration and back draughts.
Easy to install due to the core drilled hole and its twist on/off cover enabling it to be fitted and fixed easily with its single side entry fixing screw.

The ICON30 comes complete with cantilever fixing lugs enabling a recessed installation on uneven surfaces.

Slim and compact in design the ICON30 enables it to be fitted unobtrusively into small areas.

** THIS SUITS 100mm DUCT **

3 Year warranty on unit.

The main features of the Airflow ICON30 are:
Fan Size: (H/W) 225mm X (D) 45mm
Supply: 230V
Outlet: 100mm / 4 inch
Power (w) : 11w
Ductable up to 4m
Airflow: 33 litres per second / 119m cubed per hour
Sound Pressure: 33.3dB @ 3m
IP Rating: IPX4 – Splashproof

Modules to be purchased separately - Functions available timer, pull cord and humidity.
