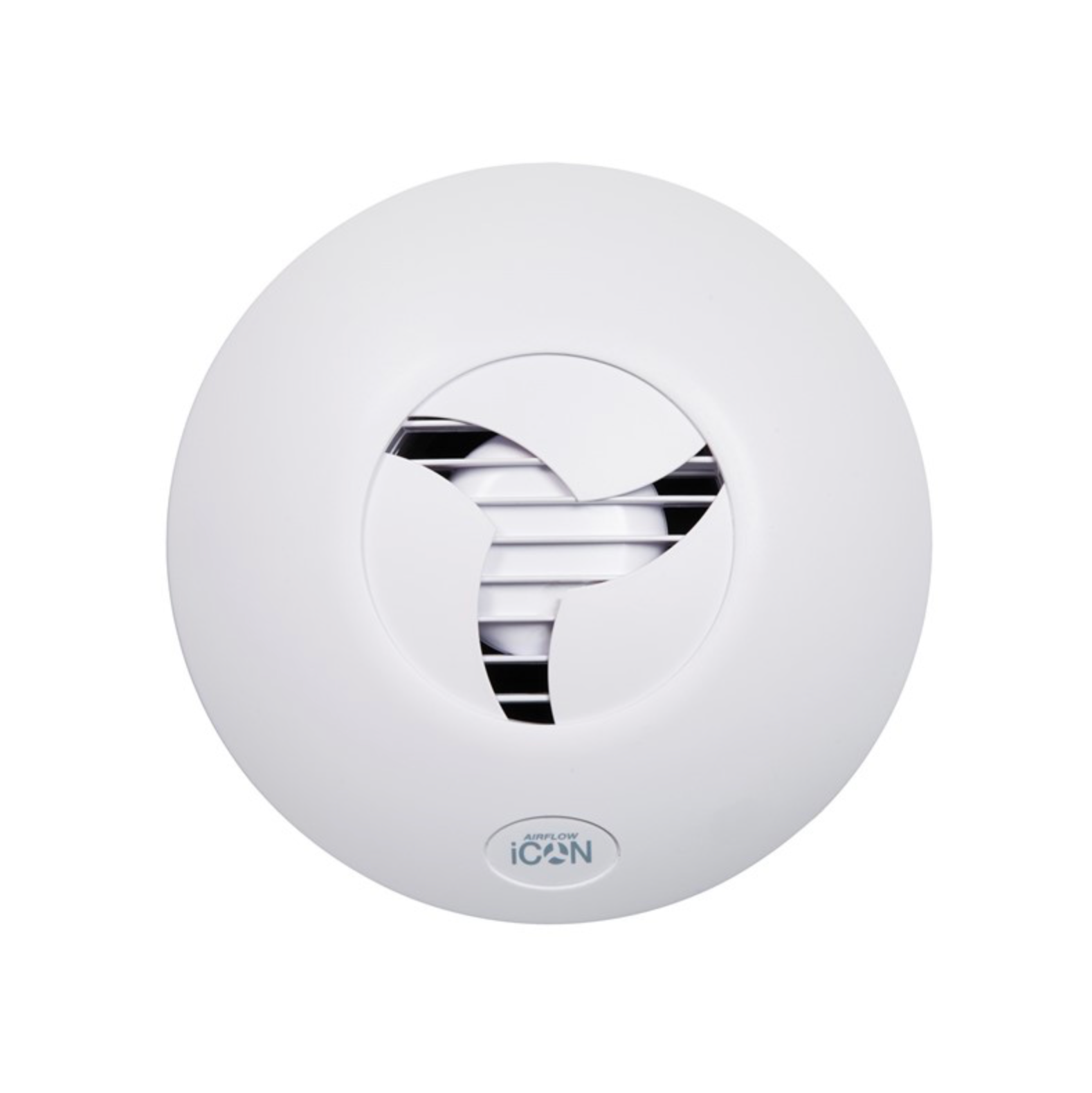

AIRFLOW ICON15 FAN ASSEMBLY WHITE 27591501 IC15

The Airflow ICON15 72683501 ventilation fan is suitable for fitting into walls or ceilings in areas such as shower rooms, bathrooms, en-suites and toilets.

The central “iris” shutter ensures the silent running of the fan to help prevent noise infiltration and back draughts.
Easy to install due to the core drilled hole and its twist on/off cover enabling it to be fitted and fixed easily with its single side entry fixing screw.

The ICON15 comes complete with cantilever fixing lugs enabling a recessed installation on uneven surfaces.

3 Year warranty on unit.

Slim and compact in design the ICON15 enables it to be fitted unobtrusively into small areas.

** THIS SUITS 100mm DUCT **

The main features of the Airflow ICON15 are:
Fan Size: (H/W) 197mm X (D) 40mm
Outlet: 100mm / 4 inch
Power: 9.4W
Weight: 0.74KG
Ductable up to 4m
Airflow: 19 litres per second / 69m cubed per hour
Sound Pressure: 28.8dB @ 3m
IP Rating: IPX4 – Splashproof

Modules to be purchased separately - Functions available timer, pull cord and humidity.
