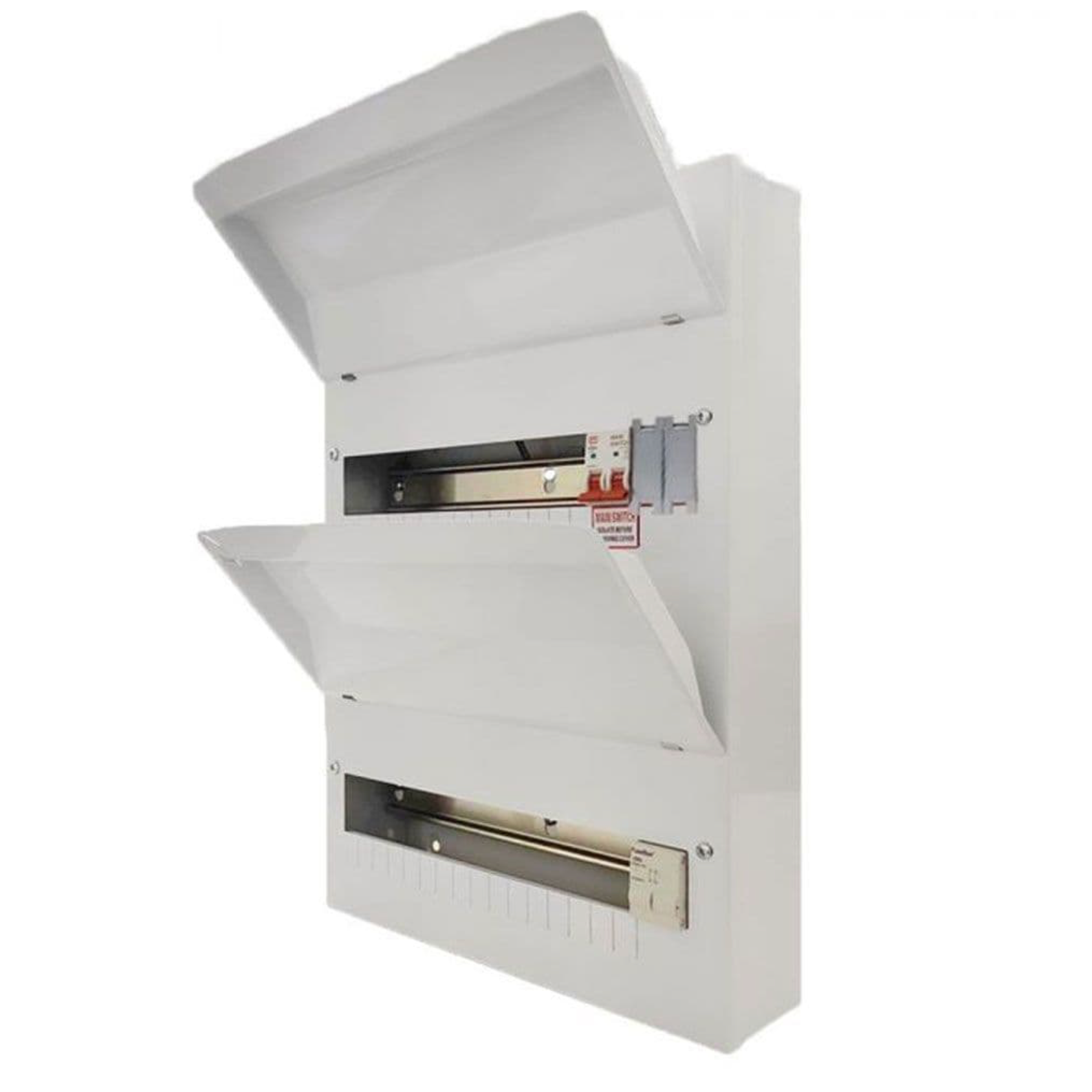

FUSEBOX F2022M 22 Way Duplex RCBO Consumer Unit

Overview
The F2022M is part of the latest range of high-quality main switch consumer units from Fusebox. This duplex unit features 22 usable ways over two rows and is supplied complete with a busbar, din rail, and 100A Main Switch and 2 blanks allowing for an optional Type 2 Surge Protection Device to be fitted.

Additional features include captive screws on the front cover, round knockouts on all four sides along with rectangular knockouts on the rear.

This consumer unit comes with an installation pack which includes a busbar, an icon label pack, and a grommet strip.

Key Features
22 usable ways
Additional ways to add a Surge Protection Device
100A main switch incomer
Earth and neutral terminal bars at the top
Removable and raised DIN rail
Round knock-outs on all faces
Identification label pack
Captive front cover screws

Additional Information
Width 306mm x Height 512mm x Depth 113mm
IP20XC
BS EN61439-3
RAL 9001 powder-coated finish
