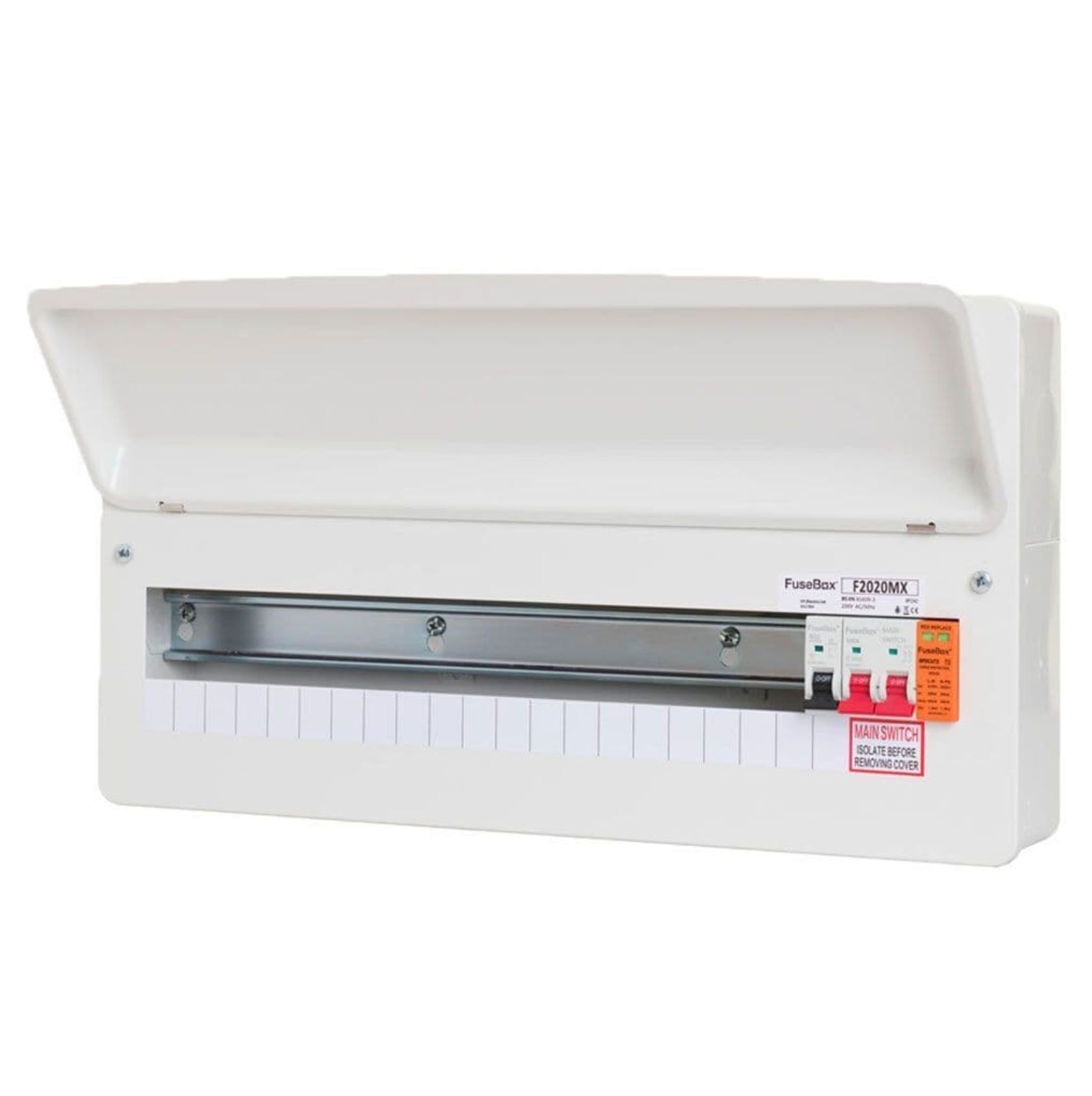

FUSEBOX F2020MX 20Way RCBO Unit + Surge Protection

Overview
The FuseBox F2020MX consumer unit features 20 usable ways and comes with 100A Main Switch Incomer, Type 2 Surge Protection with 32A MCB, and a 32mm tails clamp.

As with all of the FuseBox T2 Surge Protected consumer units, the F2020MX has ample space internally for installing both the mini and standard height RCBOs.

Additional features include captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.

This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a grommet strip.

Key Features
20 usable ways
100A main switch incomer
T2 surge protection & 32A MCB
32mm tails clamp included
Earth and neutral terminal bars at the top
Removable and raised DIN rail
Round knock-outs on all faces
Identification label pack
Captive front cover screws

Additional Information
Width 486mm x Height 259mm x Depth 113mm
Flush fit using the AFMF18 Flush Mounting Frame
IP20XC
BS EN61439-3
RAL 9001 powder-coated finish
