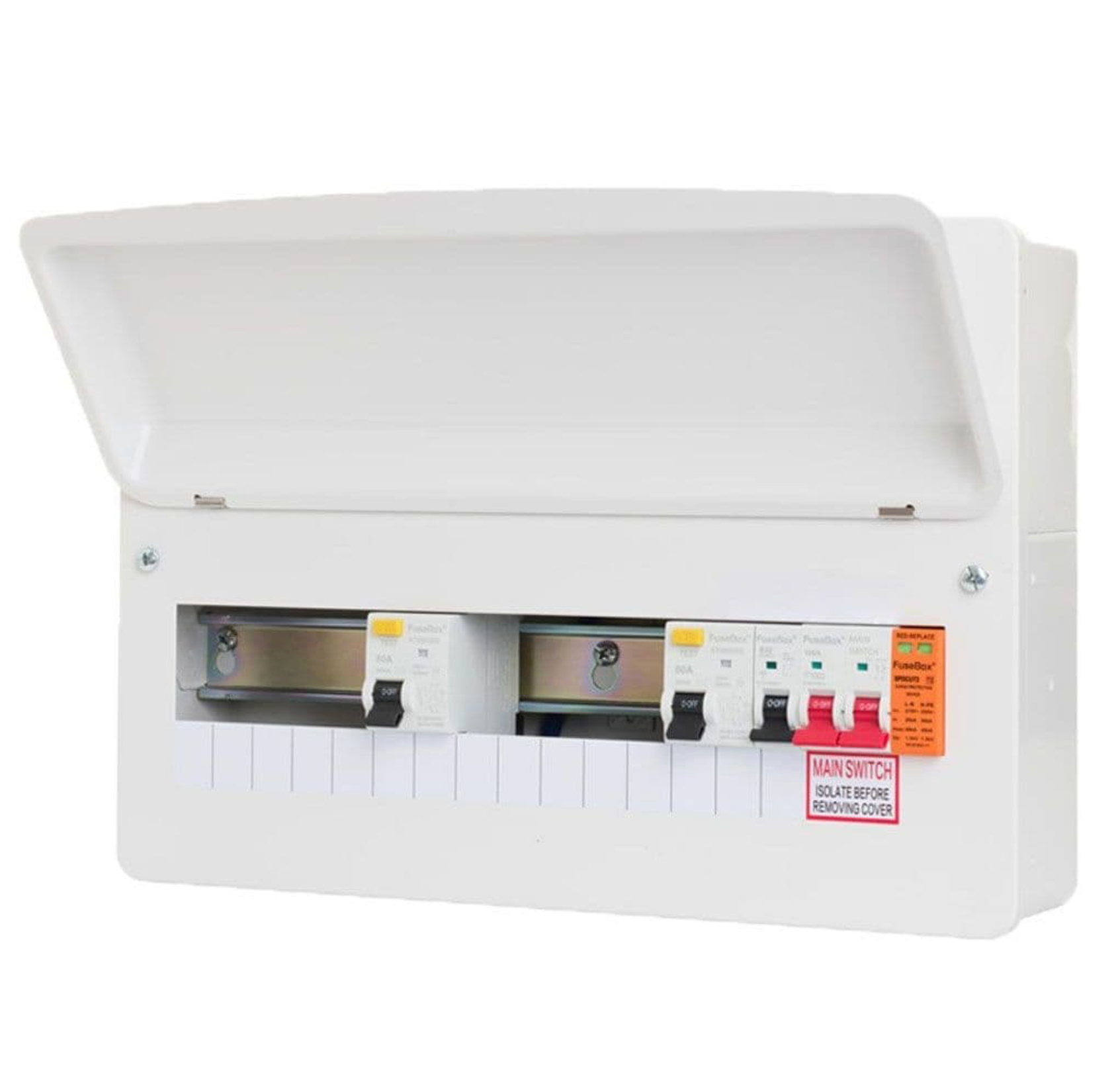

FUSEBOX F2016DX100 16Way Dual 100A TypeA RCD Consumer Unit+SP

Overview
The FuseBox F2016DX100 consumer unit features 16 usable ways and comes with 100A Main Switch Incomer, 2 x Type A 100A RCDs, and Type 2 Surge Protection with 32A MCB.

Additional features include captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.

This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a grommet strip.

Key Features
16 usable ways
100A main switch incomer
2 x Type A 100A RCDs
T2 surge protection & 32A MCB
Tails clamp Compatible
Earth and neutral terminal bars at the top
Removable and raised DIN rail
Round knock-outs on all faces
Identification label pack
Captive front cover screws

Additional Information
Width 486mm x Height 259mm x Depth 113mm
IP20XC
BS EN61439-3
RAL 9001 powder-coated finish
