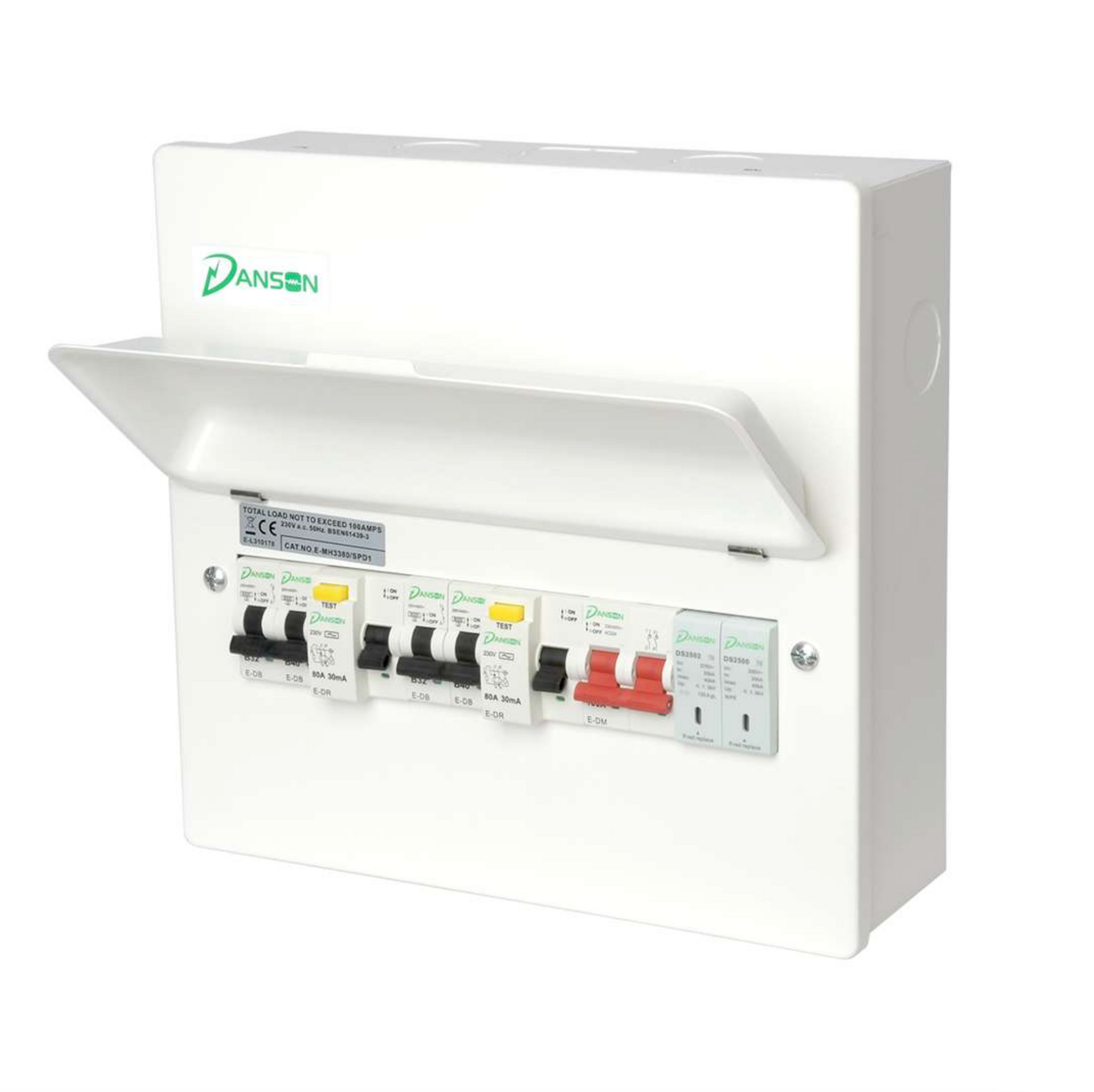

DANSON 6 WAYS HI INT METAL CONSUMER UNIT

Description

Danson 6 Ways HI INT Metal Consumer Unit Supplied With 100A Main Switch, 2 X 80A 30 mA RCD 6 MCB

It is designed to provide safe and reliable electrical distribution for domestic and light commercial applications.
It comes with a 100A main switch that serves as the primary disconnect.
The unit has 6 MCBs that provide protection against overload and short circuit faults in individual circuits.
The unit features 2 x 80A 30mA RCDs that offer protection against electrical shock by quickly cutting off the power supply when an imbalance in current is detected.
The unit is easy to install and maintain, with a simple and intuitive design that allows for quick and hassle-free wiring and assembly.

The Danson 6 Ways HI INT Metal Consumer Unit is an electrical distribution unit that is designed for use in domestic and light commercial applications. It is supplied with a range of features that are designed to provide safe and reliable electrical distribution. The unit comes with a 100A main switch that serves as the primary disconnect for the unit, which allows for the power supply to be isolated in case of emergency or maintenance. Additionally, the unit features 2 x 80A 30 mA RCDs (residual current devices), which provide protection against electrical shock by quickly cutting off the power supply when an imbalance in current is detected. This provides an extra level of safety to the electrical circuit. The Danson HI INT Metal Consumer Unit is a high-quality and reliable electrical distribution unit that provides a range of features designed to ensure safety and reliability.

Features:
Consumer Unit Type: HI INT Metal.
Main Switch Rating: 100A.
RCD Rating: 80A.
RCD Sensitivity: 30mA.
Number of RCDs: 2.
Number of MCBs: 6.
Total Ways: 6.
Enclosure Material: Metal.
Enclosure Type: High Integrity.
Rated Voltage: 230V AC.
Rated Frequency: 50Hz.
Phase: Single.
Neutral: Included.
Earth Terminal: Included.
Cable Capacity: 25mm².
IP Rating: IP2X.
Type Tested to BS EN 61439-3.
Designed to Meet Amendment 3 of BS 7671:2018.
