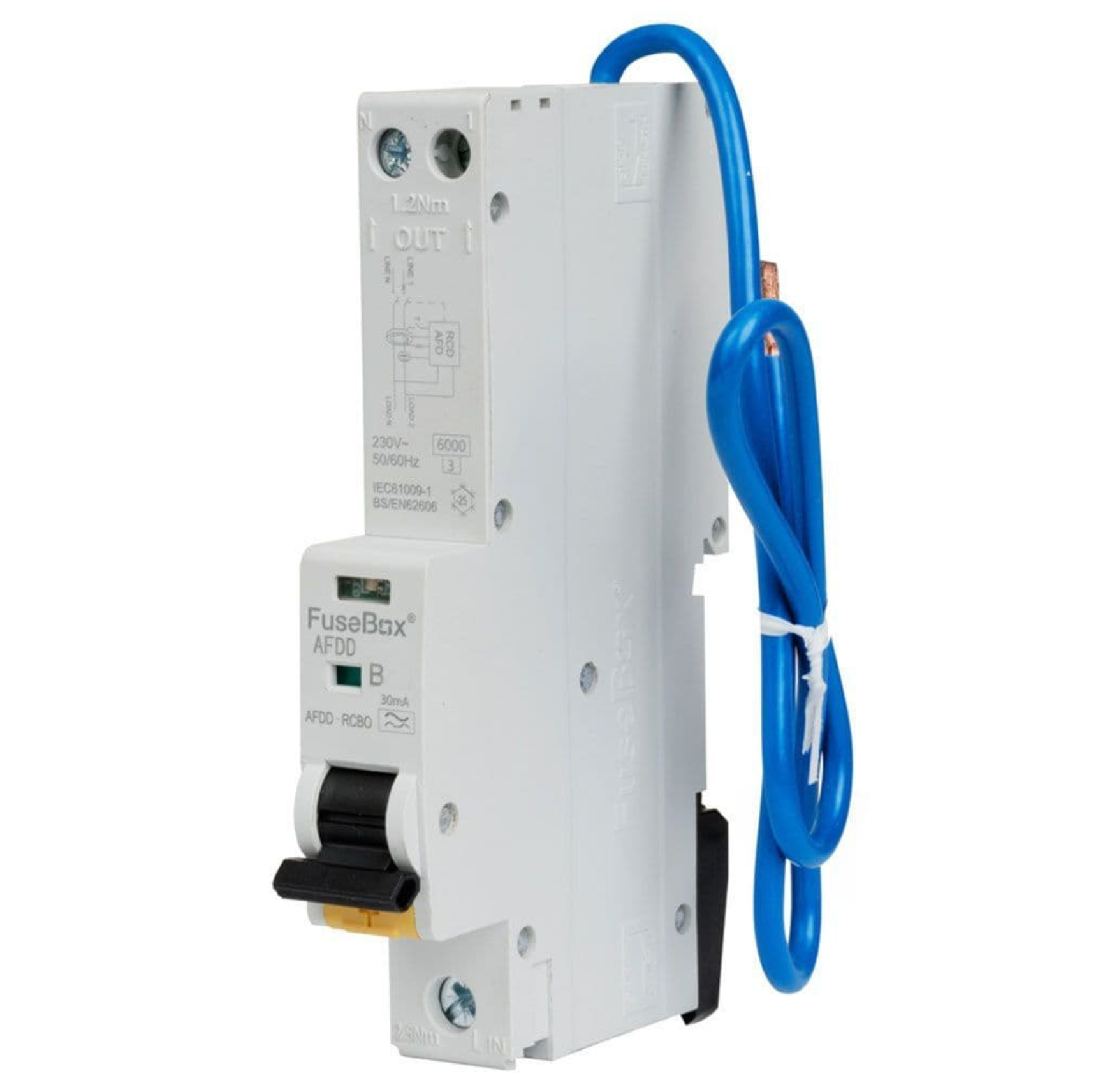

FuseBox 6amp AFDD RCBO 30mA AFDD060630B

Overview
FuseBox's AFDD is a single module device which is suitable for new and existing FuseBox installations. Designed to protect against ARC FAULTS (Series and Parallel), overload, short circuit and earth leakage. The AFDD060630B is double pole RCBO AFDD meaning the Line and Neutral conductors do not have to be disconnected for IR (insulation resistance) testing if the lever is in the OFF position making it the ideal solution any property requiring AFDD protection.

Key Features
Retrofit to any FuseBox Consumer Unit
Single module
Double Pole RCBO 1P+N (switched)
Type A for AC and pulsating DC sensitivity
Short circuit capacity of 6kA with a maximum rating of 40A
LED indication
Fully compliant and 3rd party tested to BS EN 62606 / IEC 61009-1
