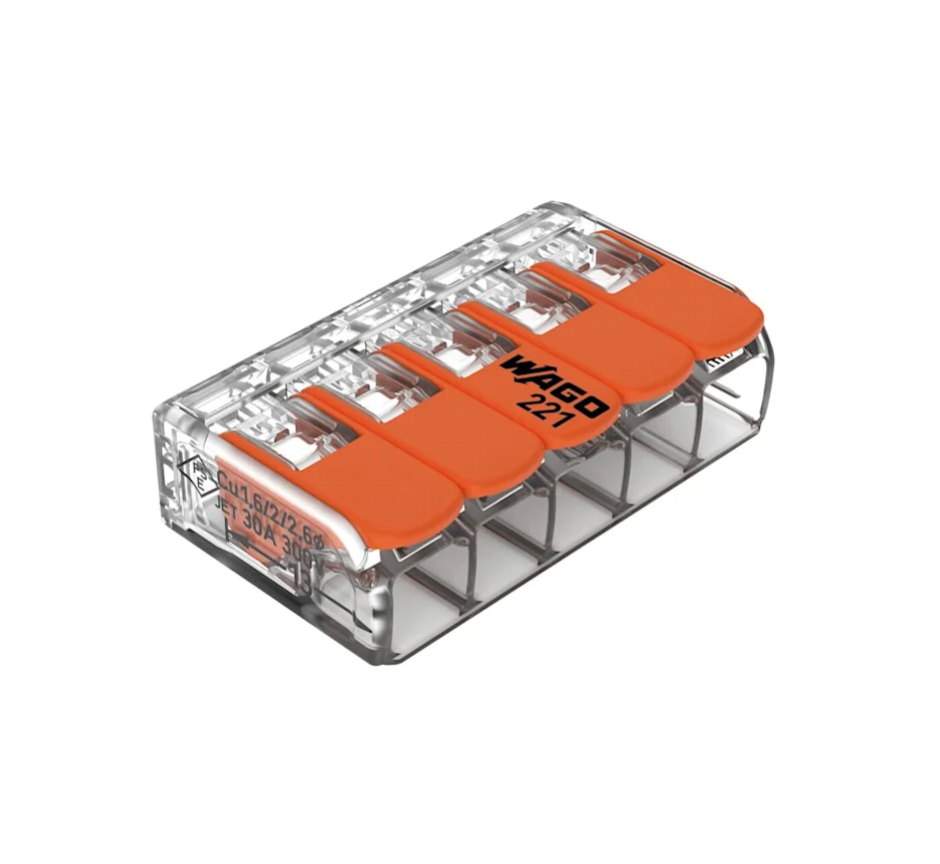

Wago 221 Compact Lever Splicing Connectors 221-615

Wago 221-615 5 Way Compact Splicing Connectors Lever Terminal Block 6mm 15PC

Easily terminate conductors from 0.15 to 6 mm² (24--10 AWG).
100% Transparent housing.
Pull the lever up, insert a conductor and push the lever back down.
Connect solid, stranded, and fine-stranded conductors.
Quickly install Devices with higher levels of power consumption.
Wago Compact Connectors 5 Lever Terminal Block is ideal for space-restricted applications. The compact design allows up to 6mm cable, including strand, solid, or flex cable, making these versatile electrical connectors perfect for almost any lighting or domestic wiring application in the home. To use the connectors, simply lift the lever, insert the cable strand (strip approx. 11mm conductor) into the connector, and close the lever to terminate cables quickly easily, and securely.

Features:
Wago 221-612 5 lever connector.
Up to 6mm²/10AWG Lever Connector.
Solid, Stranded & Fine Stranded Conductor: 0.5-6mm².
Current Rating: 41A.
Voltage Rating: 450V.
Ambient Temperature: 85°C.
Clear with Orange Levers.
Side entry wiring type.
Cross-section (mm²): 0.2 - 6.0 mm² (flexible).
Cross-section (AWG): 20 - 10 AWG.
Number of strands: 5.
Requires cable stripped length of 11mm.
Flammability rating per UL 94: V2.
Safely install long cable runs with larger conductor cross-sections.
Easy termination via reduced operating force.
(H)10mm x (W)16mm x (D)21mm
